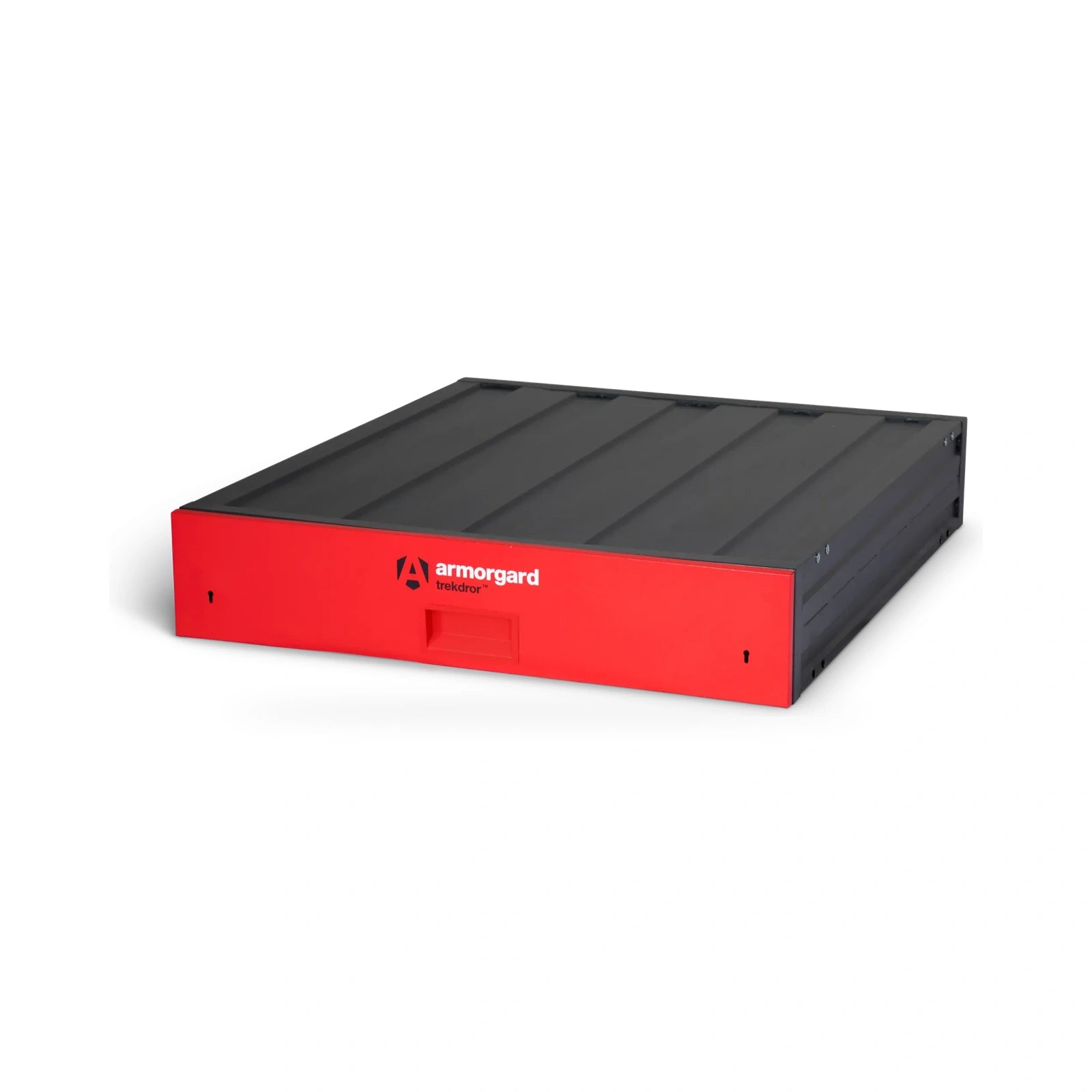

Armorgard TrekDror TKD2 Vehicle Tool Drawer — drawer closed without optional accessories

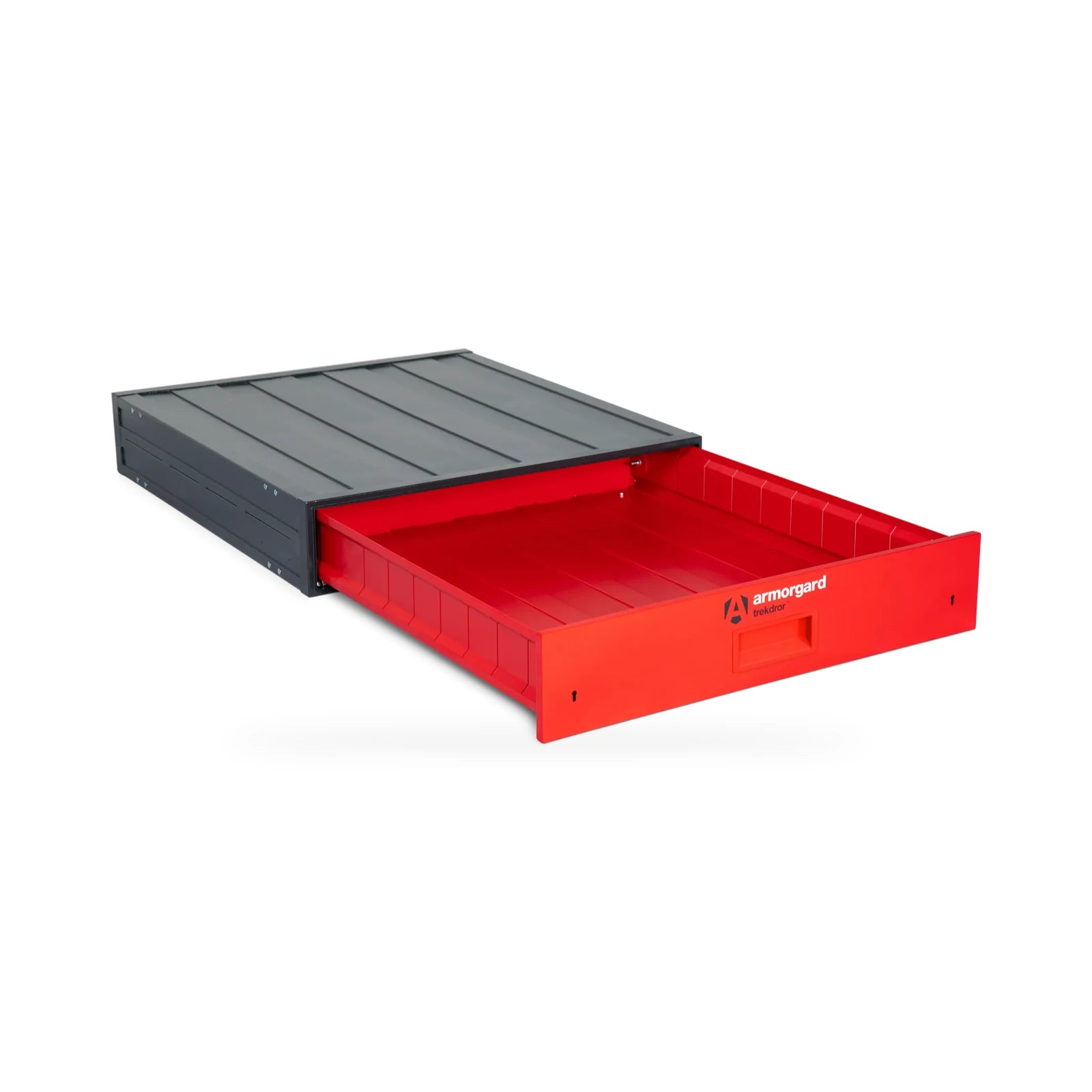

Armorgard TrekDror TKD2 Vehicle Tool Drawer — empty drawer extended

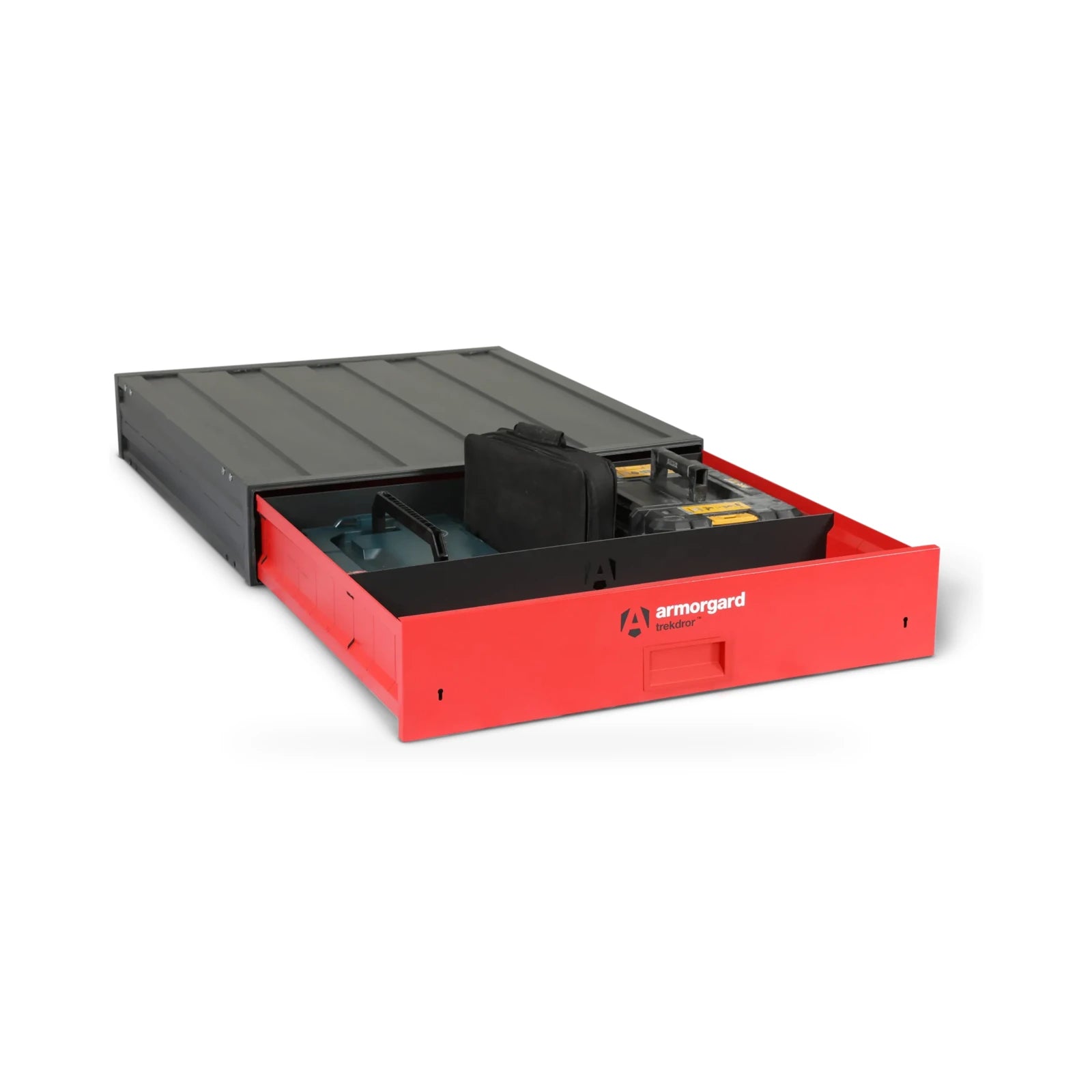

Armorgard TrekDror TKD2 Vehicle Tool Drawer — with optional dividers and illustrative tools. Optional dividers shown; tools are illustrative and not included.

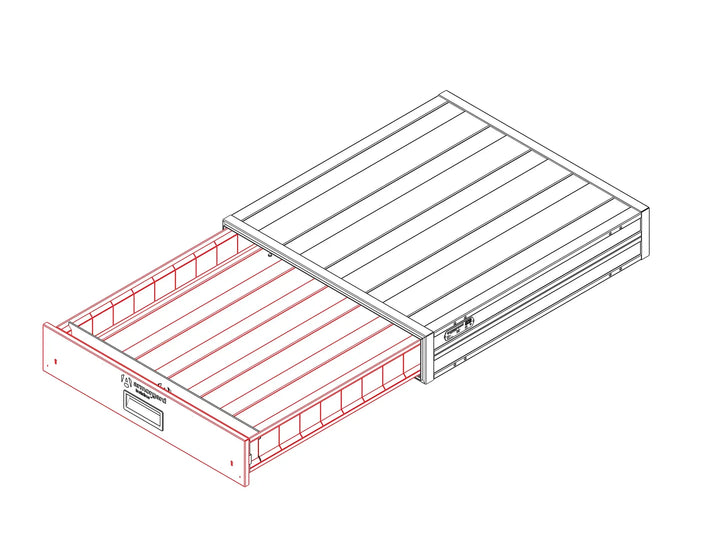

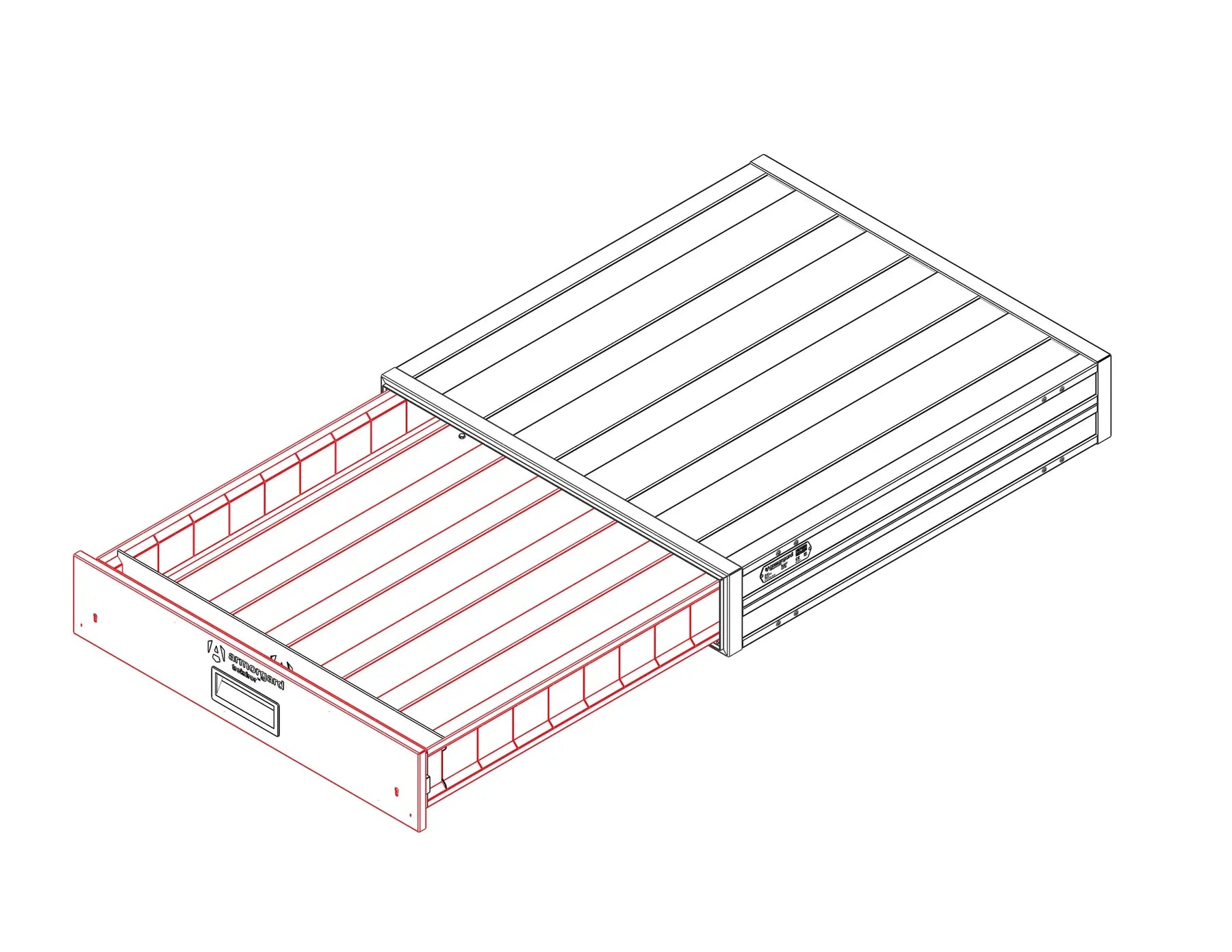

Armorgard TrekDror TKD2 Vehicle Tool Drawer — official manufacturer product illustration. Official manufacturer drawing, not a generated image.
Armorgard TrekDror TKD2 Vehicle Tool Drawer — drawer closed without optional accessories
Armorgard TrekDror TKD2 Vehicle Tool Drawer — empty drawer extended
Armorgard TrekDror TKD2 Vehicle Tool Drawer — with optional dividers and illustrative tools. Optional dividers shown; tools are illustrative and not included.
Armorgard TrekDror TKD2 Vehicle Tool Drawer — official manufacturer product illustration. Official manufacturer drawing, not a generated image.
Armorgard

Armorgard TrekDror TKD2 Vehicle Tool Drawer

£449.99 ex VAT
£539.99 inc VAT

Mainland GB delivery included

Use shallow vehicle storage space with the wide, low-profile TrekDror TKD2. At 200 mm high externally, this sliding tool drawer provides a different fit from TKD1 and TKD3. Two 5-lever deadlocks secure the drawer, and both the drawer and top have a published 120 kg uniformly distributed working load limit.

/
Choose the number of units for this order.
Mainland GB delivery includedIncluded in the advertised price
Secure checkoutSafe ordering through SAB
Mainland GB deliveryEngland, Scotland and Wales
Real UK supportSpeak to our friendly team

About Armorgard TrekDror TKD2 Vehicle Tool Drawer

The TrekDror TKD2 is the wide, low-profile drawer option. Its casing measures 975 × 1036 × 200 mm externally, making it worth considering where width is available but height is restricted. Measure the installation area carefully, including the clearance needed to open the drawer and reach the contents. A low casing should not be selected solely from its external height if the access route or surrounding equipment makes the drawer awkward to use.

Compared with TKD1 and TKD3, the broader shape changes how tools can be arranged. It suits a storage plan built around shallow space rather than a tall, narrow enclosure. Check the actual equipment you want to carry and the proposed mounting position before buying. Do not assume an internal dimension that is not stated in the verified specifications, or transfer a load rating from another TrekDror model.

TKD2 has a corrugated 1.5 mm steel casing with a powder-coated finish. Two 5-lever deadlocks secure the drawer and three keys are supplied. The drawer working load limit is 120 kg UDL; importantly, the top working load limit is also 120 kg UDL for this model. UDL means uniformly distributed load. Use the published ratings for the exact TKD2 and follow the manufacturer’s loading instructions.

Stacking requires the appropriate optional kit, and mounting kits, dividers and rubber mats are separate accessories. Confirm the parts needed for your vehicle or workshop installation before ordering rather than assuming they are included. The published weight is 62 kg, so plan handling as well as the finished layout. Compare the narrow TKD1 or taller TKD3 if the low-profile format does not match your tools. SAB can help you check the model and accessory requirements before you place the order.

Key features

Corrugated steel casing

Corrugated 1.5 mm steel casing with a powder-coated finish.

Two deadlocks

Two 5-lever deadlocks secure the sliding drawer.

Drawer load rating

Drawer working load limit of 120 kg uniformly distributed load (UDL).

Optional stacking kit

Stackable with the appropriate optional stacking kit.

Optional organisation accessories

Optional mounting kits, dividers and rubber mats support vehicle organisation.

Specifications

ModelTKD2
External dimensions (W × D × H)975 × 1036 × 200 mm
Weight62 kg
MaterialCorrugated 1.5 mm steel
FinishPowder coated
Locking systemTwo 5-lever deadlocks
Keys supplied3 keys
Drawer working load limit120 kg uniformly distributed load (UDL)
Top working load limit120 kg uniformly distributed load (UDL)

Dimensions and weights are approximate. Check the exact model and operating instructions before use.

Suitable applications

  • Low-profile van storage layouts
  • Wide workshop tool-drawer arrangements
  • Organising equipment in shallow storage space

Compare the range

Choose the drawer casing that fits both your tools and the installation. TKD1 is narrow and 300 mm high; TKD2 is wider and only 200 mm high; TKD3 is narrow and 490 mm high. Check the opening clearance as well as the casing. All three have a 120 kg UDL drawer limit, but TKD2’s top limit differs from TKD1 and TKD3. Confirm separate mounting and stacking accessories.

Delivery information

Mainland GB delivery included

Standard delivery is included to mainland England, Scotland and Wales, including the Scottish Highlands. We do not deliver this range to islands or offshore destinations. Northern Ireland and British Forces addresses are outside our online delivery service. Please tell us about restricted vehicle access or unloading requirements so we can coordinate delivery. Delivered directly from the supplier. Typically 2–3 working days for stocked products; estimated, not guaranteed.

Please provide a usable mobile number so delivery can be coordinated. Contact SAB before ordering if your destination or site access needs checking.

Need to check before ordering?

Talk to SAB about the exact model, delivery arrangements or a specific product requirement.

Call 01429 869498Email SAB

Buy with help from SAB Supply

Choose the exact equipment model, see your unit price clearly and order through our secure checkout. If dimensions, accessories or delivery arrangements need checking, speak to our team before you buy.

About Armorgard

Armorgard manufactures equipment for tool storage, material handling, workstations, hazardous-material storage and charging areas. The exact model matters: compare its dimensions, locking or handling features and stated configuration before ordering. SAB Supply can help you check the product information and delivery arrangements for the equipment selected.

Frequently asked questions

Does TKD2 have the same top load rating as TKD1?

No. TKD2’s published top working load limit is 120 kg UDL, and its drawer limit is also 120 kg UDL. Do not transfer TKD1’s top rating to this model.

What are the external dimensions of TKD2?

TKD2 measures 975 × 1036 × 200 mm externally. Check these external dimensions against the intended location, including working access and the delivery route. Use only the separately stated internal dimensions to assess contents; contact SAB where a precise fit is critical.

What are the main verified features of TKD2?

Corrugated 1.5 mm steel casing with a powder-coated finish. Two 5-lever deadlocks secure the sliding drawer. Drawer working load limit of 120 kg uniformly distributed load (UDL). Review the specifications and operating instructions for this exact model before use.

What should I check before ordering TKD2?

Check the TKD2 dimensions, working access and any separate installation or accessory requirements against your intended use. Product photographs can show optional fittings; use the stated inclusions rather than assuming every pictured item is supplied. SAB can help confirm the exact model.

Where is delivery available?

Standard delivery is included to mainland England, Scotland and Wales, including the Scottish Highlands. We do not deliver this range to islands or offshore destinations. Northern Ireland and British Forces addresses are outside our online delivery service. Please tell us about restricted vehicle access or unloading requirements so we can coordinate delivery. Orders are checked against our delivery area before supplier dispatch. If an order is placed for an address we cannot serve, we will contact you and refund the affected items and any applicable delivery charge.

Help choosing the right equipment

Check the model with SAB before ordering if you need advice on fit, configuration or delivery.
