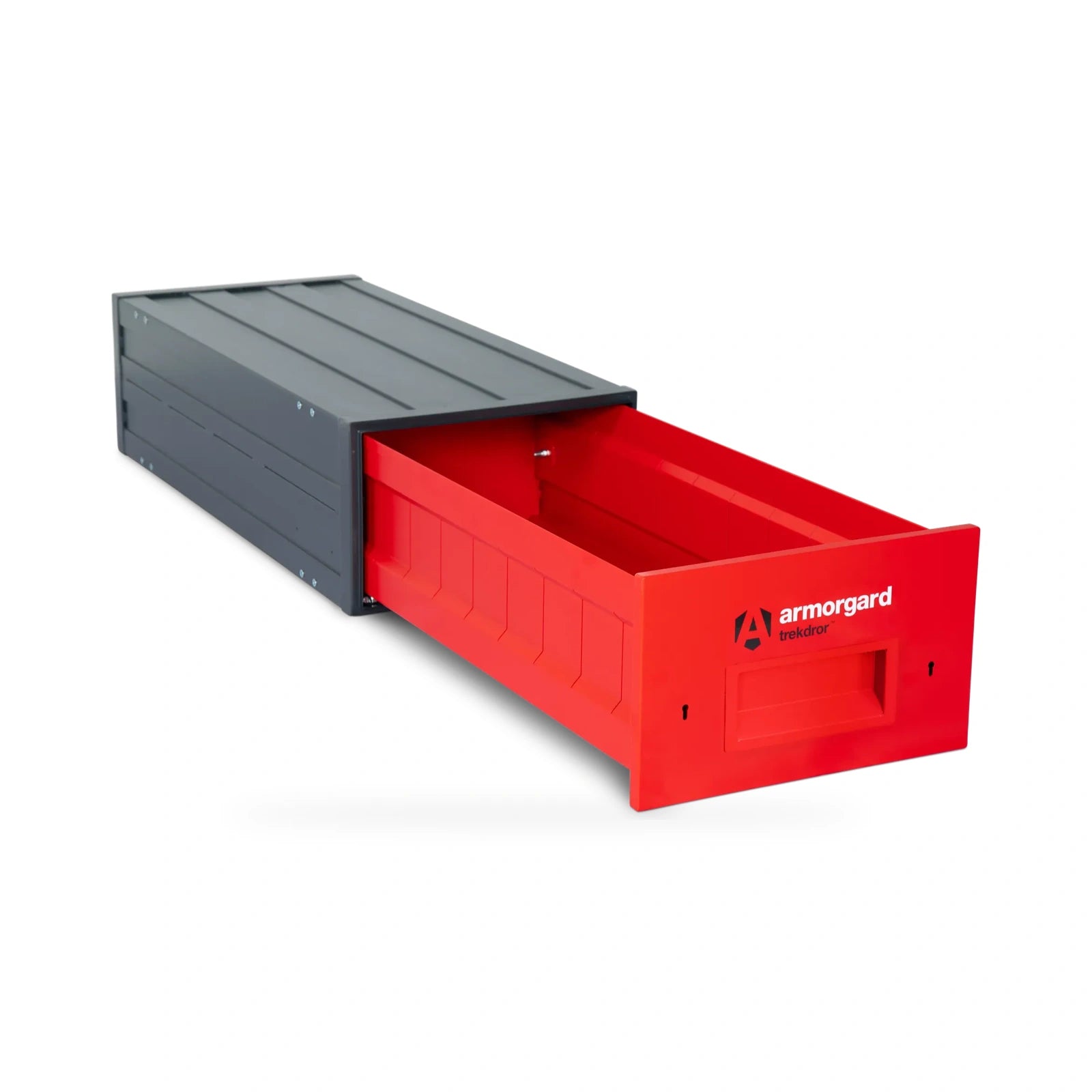

Armorgard TrekDror TKD1 Vehicle Tool Drawer — drawer extended without optional dividers or contents

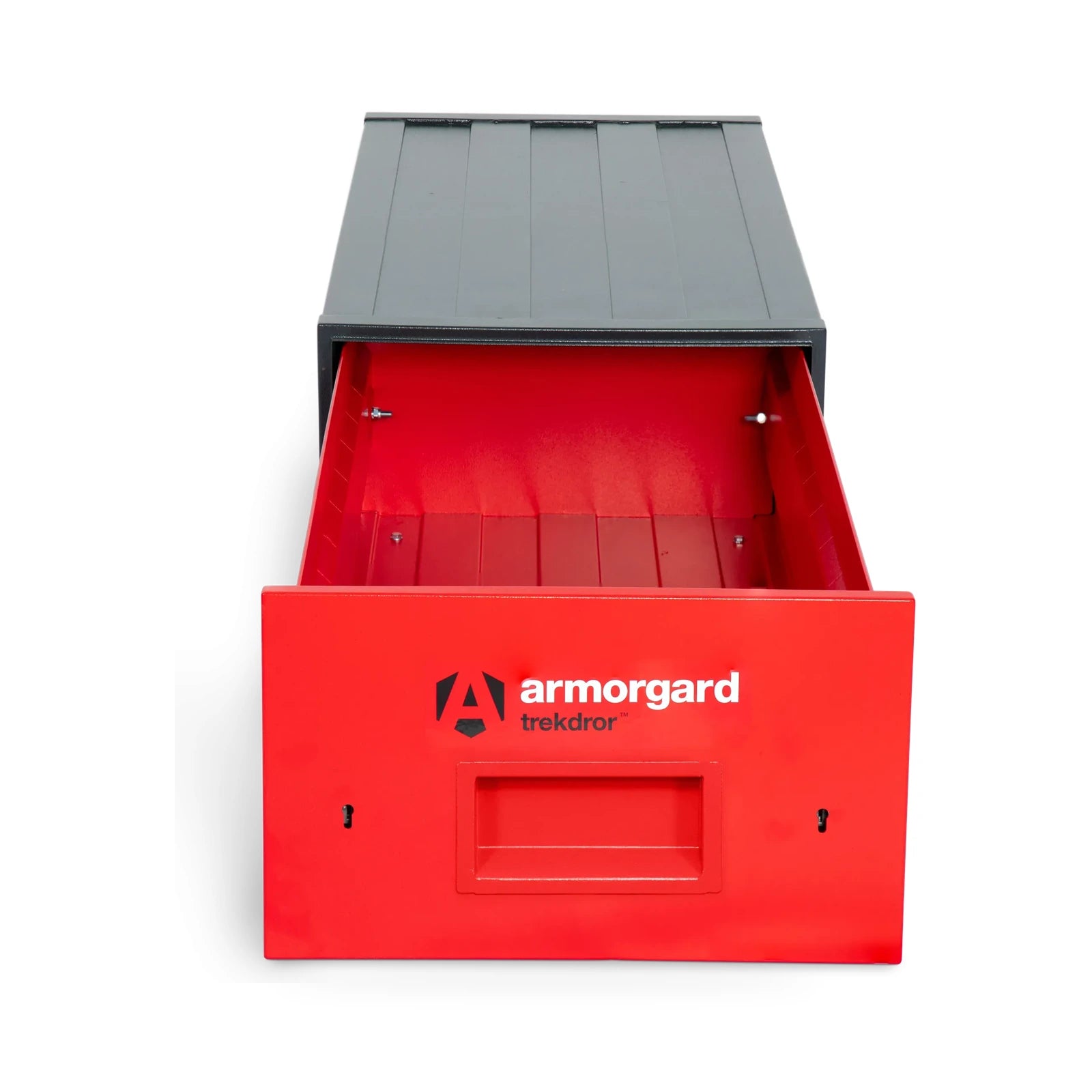

Armorgard TrekDror TKD1 Vehicle Tool Drawer — front view of empty extended drawer

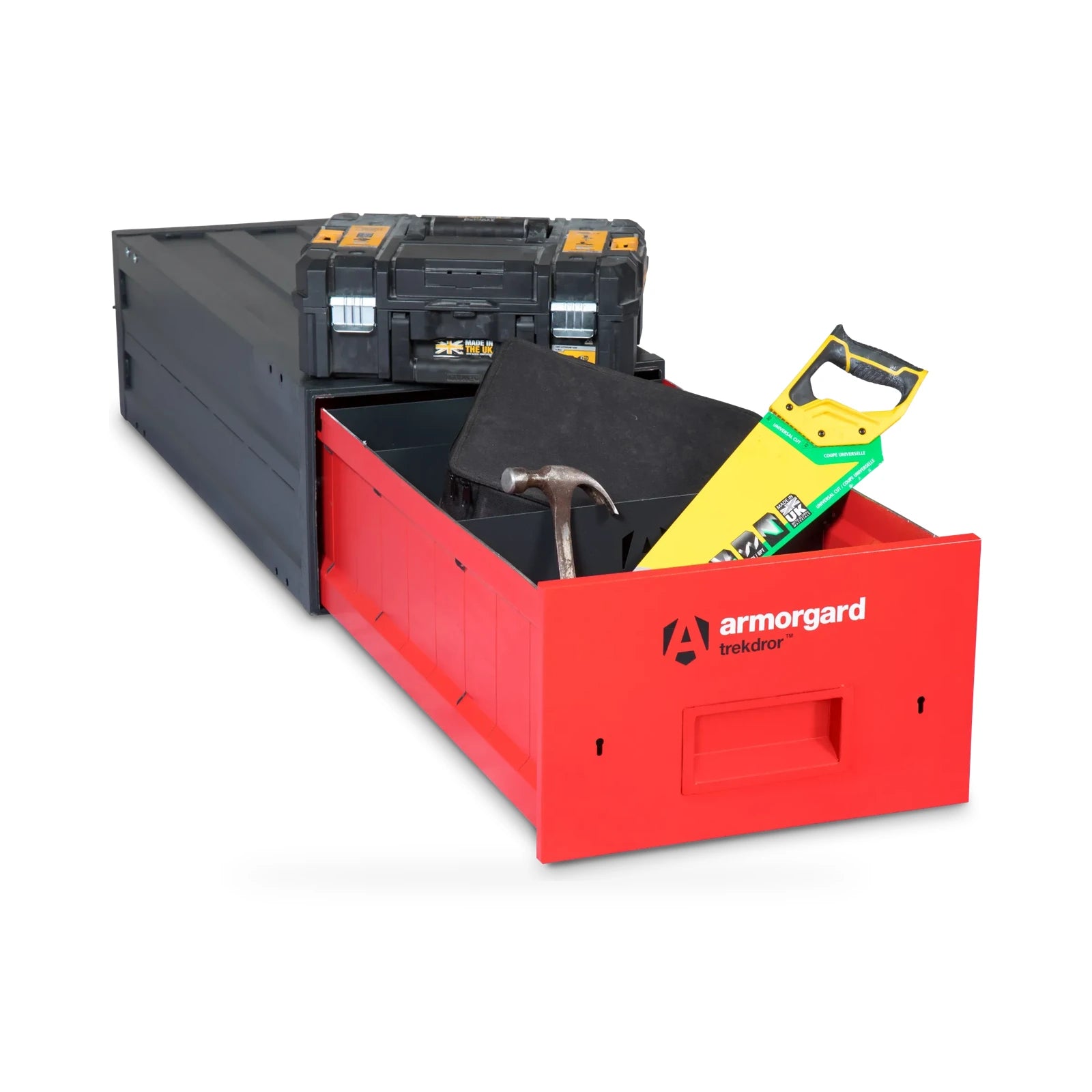

Armorgard TrekDror TKD1 Vehicle Tool Drawer — with optional dividers and illustrative tools. Optional dividers shown; tools are illustrative and not included.

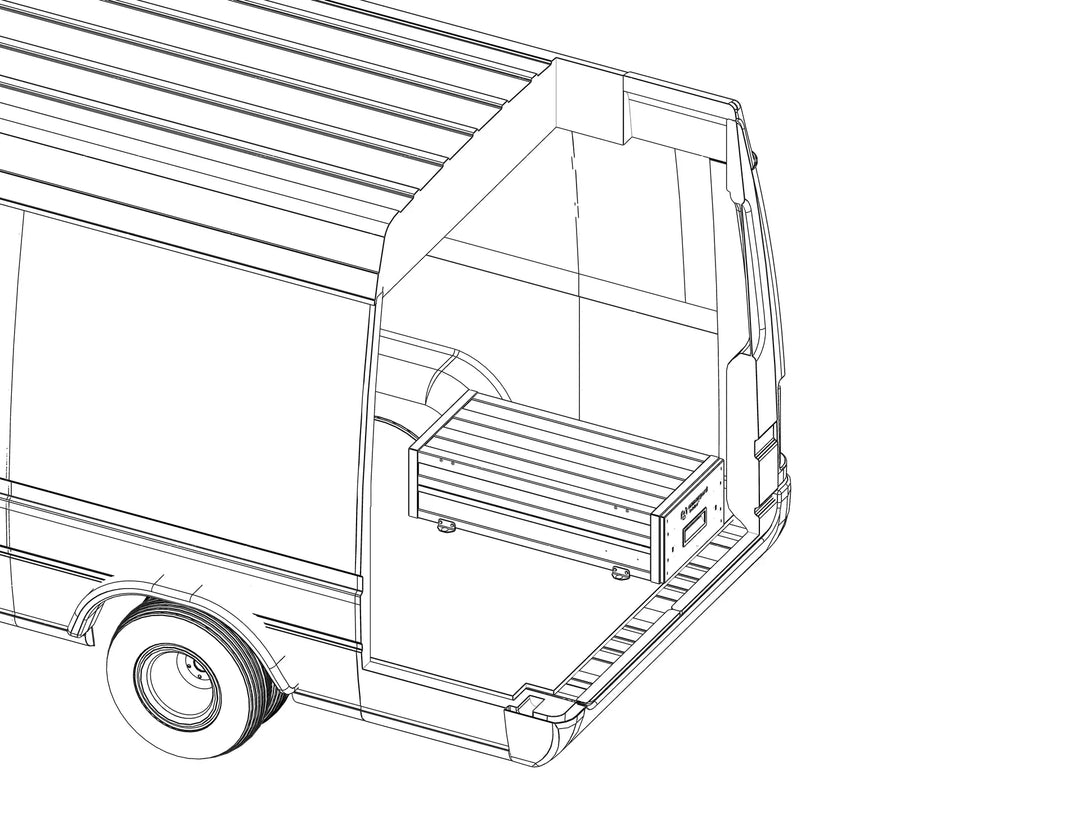

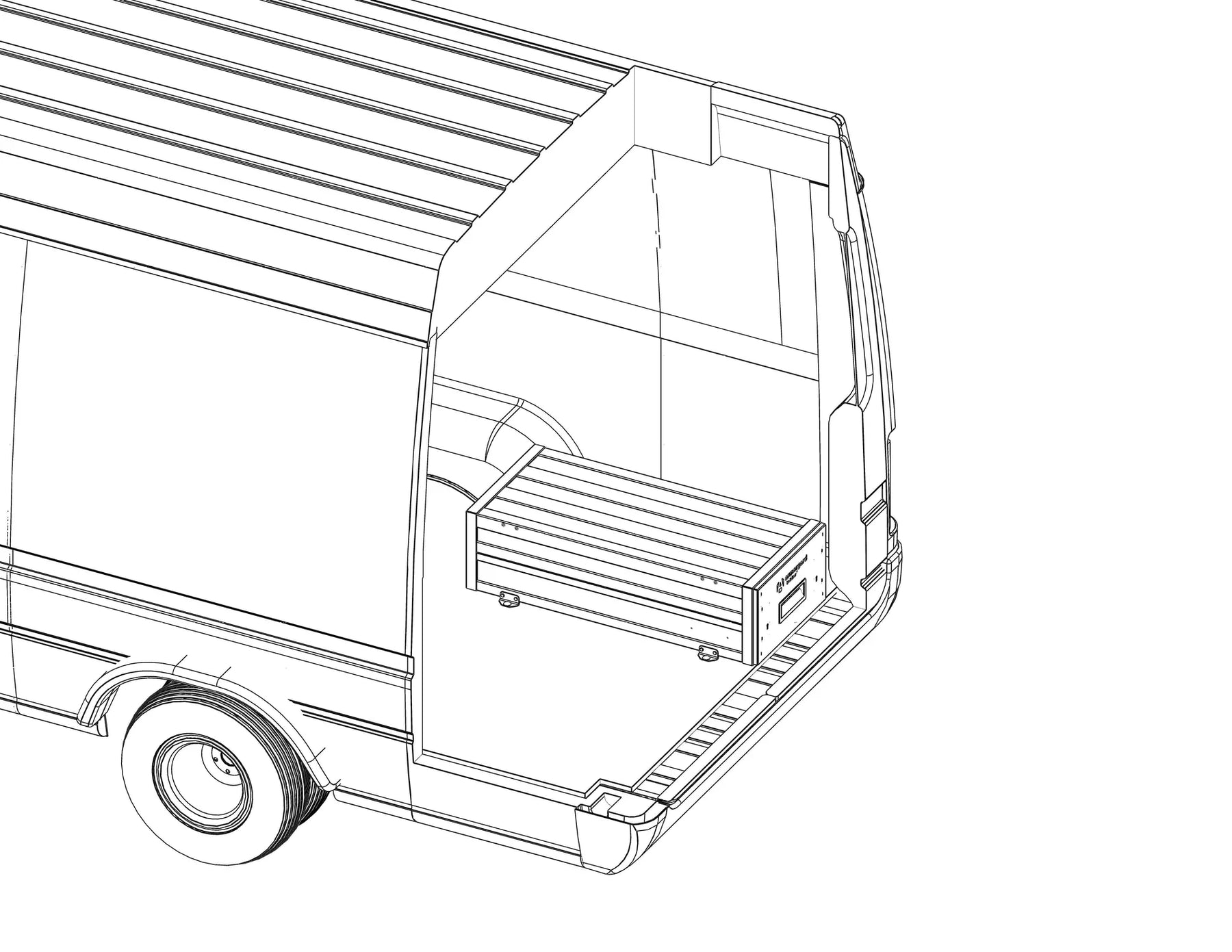

Armorgard TrekDror TKD1 Vehicle Tool Drawer — official vehicle installation illustration. Official manufacturer drawing; vehicle and illustrative contents not included.
Armorgard TrekDror TKD1 Vehicle Tool Drawer — drawer extended without optional dividers or contents
Armorgard TrekDror TKD1 Vehicle Tool Drawer — front view of empty extended drawer
Armorgard TrekDror TKD1 Vehicle Tool Drawer — with optional dividers and illustrative tools. Optional dividers shown; tools are illustrative and not included.
Armorgard TrekDror TKD1 Vehicle Tool Drawer — official vehicle installation illustration. Official manufacturer drawing; vehicle and illustrative contents not included.
Armorgard

Armorgard TrekDror TKD1 Vehicle Tool Drawer

£344.99 ex VAT
£413.99 inc VAT

Mainland GB delivery included

Access vehicle tools from a lockable sliding drawer with the Armorgard TrekDror TKD1. Its narrow 490 mm-wide casing supports van and workshop organisation, with two 5-lever deadlocks and a drawer working load limit of 120 kg uniformly distributed. Optional mounting, stacking and divider accessories should be checked separately for your chosen installation.

/
Choose the number of units for this order.
Mainland GB delivery includedIncluded in the advertised price
Secure checkoutSafe ordering through SAB
Mainland GB deliveryEngland, Scotland and Wales
Real UK supportSpeak to our friendly team

About Armorgard TrekDror TKD1 Vehicle Tool Drawer

TKD1 uses a sliding drawer rather than a top-opening box, making access direction an important part of the choice. The external casing measures 490 × 1095 × 300 mm. In a van or workshop installation, check both the space occupied by the casing and the clearance needed to use the drawer. The published external depth alone does not describe the full access space required once the drawer is opened.

The narrow format is useful to compare with the wide, low TKD2 and the taller TKD3. Consider the tools you need to organise, the available storage height and the position from which you will retrieve them. A drawer can provide an orderly storage point without the top access associated with a site box, but the installation still needs to suit your vehicle or workspace and the equipment placed around it.

The casing is corrugated 1.5 mm steel with a powder-coated finish, secured by two 5-lever deadlocks. Three keys are supplied. The drawer working load limit is 120 kg uniformly distributed load, while the published top working load limit is 1000 kg uniformly distributed load. Keep those two ratings distinct and follow the manufacturer’s loading guidance; neither rating should be applied to a concentrated load without checking the instructions.

TKD1 is stackable with the appropriate optional stacking kit. Mounting kits, dividers and rubber mats are also optional accessories, so confirm what your proposed arrangement needs before ordering. The unit weighs 44 kg and should be positioned using suitable handling arrangements. Compare the other TrekDror sizes below to choose the casing shape that fits your installation. SAB can help you review the exact model and separate accessories before you commit to the drawer layout.

Key features

Corrugated steel casing

Corrugated 1.5 mm steel casing with a powder-coated finish.

Two deadlocks

Two 5-lever deadlocks secure the sliding drawer.

Drawer load rating

Drawer working load limit of 120 kg uniformly distributed load (UDL).

Optional stacking kit

Stackable with the appropriate optional stacking kit.

Optional organisation accessories

Optional mounting kits, dividers and rubber mats support vehicle organisation.

Specifications

ModelTKD1
External dimensions (W × D × H)490 × 1095 × 300 mm
Weight44 kg
MaterialCorrugated 1.5 mm steel
FinishPowder coated
Locking systemTwo 5-lever deadlocks
Keys supplied3 keys
Drawer working load limit120 kg uniformly distributed load (UDL)
Top working load limit1,000 kg uniformly distributed load (UDL)

Dimensions and weights are approximate. Check the exact model and operating instructions before use.

Suitable applications

  • Narrow van tool-drawer layouts
  • Workshop tool organisation
  • Accessing tools from the end of a storage unit

Compare the range

Choose the drawer casing that fits both your tools and the installation. TKD1 is narrow and 300 mm high; TKD2 is wider and only 200 mm high; TKD3 is narrow and 490 mm high. Check the opening clearance as well as the casing. All three have a 120 kg UDL drawer limit, but TKD2’s top limit differs from TKD1 and TKD3. Confirm separate mounting and stacking accessories.

Delivery information

Mainland GB delivery included

Standard delivery is included to mainland England, Scotland and Wales, including the Scottish Highlands. We do not deliver this range to islands or offshore destinations. Northern Ireland and British Forces addresses are outside our online delivery service. Please tell us about restricted vehicle access or unloading requirements so we can coordinate delivery. Delivered directly from the supplier. Typically 2–3 working days for stocked products; estimated, not guaranteed.

Please provide a usable mobile number so delivery can be coordinated. Contact SAB before ordering if your destination or site access needs checking.

Need to check before ordering?

Talk to SAB about the exact model, delivery arrangements or a specific product requirement.

Call 01429 869498Email SAB

Buy with help from SAB Supply

Choose the exact equipment model, see your unit price clearly and order through our secure checkout. If dimensions, accessories or delivery arrangements need checking, speak to our team before you buy.

About Armorgard

Armorgard manufactures equipment for tool storage, material handling, workstations, hazardous-material storage and charging areas. The exact model matters: compare its dimensions, locking or handling features and stated configuration before ordering. SAB Supply can help you check the product information and delivery arrangements for the equipment selected.

Frequently asked questions

Are the TKD1 drawer and top load limits the same?

No. The drawer limit is 120 kg UDL and the published top limit is 1000 kg UDL. Keep these ratings separate and follow Armorgard’s loading instructions. UDL means uniformly distributed load.

What are the external dimensions of TKD1?

TKD1 measures 490 × 1095 × 300 mm externally. Check these external dimensions against the intended location, including working access and the delivery route. Use only the separately stated internal dimensions to assess contents; contact SAB where a precise fit is critical.

What are the main verified features of TKD1?

Corrugated 1.5 mm steel casing with a powder-coated finish. Two 5-lever deadlocks secure the sliding drawer. Drawer working load limit of 120 kg uniformly distributed load (UDL). Review the specifications and operating instructions for this exact model before use.

What should I check before ordering TKD1?

Check the TKD1 dimensions, working access and any separate installation or accessory requirements against your intended use. Product photographs can show optional fittings; use the stated inclusions rather than assuming every pictured item is supplied. SAB can help confirm the exact model.

Where is delivery available?

Standard delivery is included to mainland England, Scotland and Wales, including the Scottish Highlands. We do not deliver this range to islands or offshore destinations. Northern Ireland and British Forces addresses are outside our online delivery service. Please tell us about restricted vehicle access or unloading requirements so we can coordinate delivery. Orders are checked against our delivery area before supplier dispatch. If an order is placed for an address we cannot serve, we will contact you and refund the affected items and any applicable delivery charge.
