Genie Lift Weekly Hire
Selected model guidance
Headline capacity at 46cm load centre. Allowable load reduces as the load centre increases.
Selected model guidance
Headline capacity at 46cm load centre. Allowable load reduces as the load centre increases.

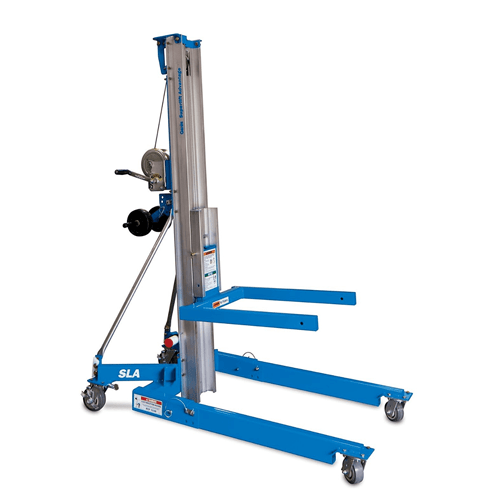

Genie Superlift Advantage machines are manually operated material lifts for positioning materials, equipment and components at height. Choose the model by required lift height, load weight, load centre and available setup space.
Choose the appropriate SLA model for lifting materials and components, using the stated load-centre capacity as part of the planning decision.
The portable manual design is intended for transport and use where larger lifting equipment is impractical, subject to route and floor checks.
SLA-10, SLA-15 and SLA-25 provide maximum lift heights of 3.49m, 4.98m and 7.94m respectively.
| Model | Max lift height | Capacity at 46cm load centre | Stowed height | Machine weight | Stowed width | Operating length |
|---|---|---|---|---|---|---|
| SLA-10 | 3.49m | 454kg | 1.99m | 118kg | 0.80m | 1.51m |
| SLA-15 | 4.98m | 363kg | 1.99m | 151kg | 0.80m | 1.88m |
| SLA-25 | 7.94m | 295kg | 1.99m | 204kg | 0.80m | 2.08m |
Capacities shown are Genie ratings at a 46cm load centre. Allowable load reduces as the load centre increases; confirm the load position and attachment before hire.
Standard fork dimensions: approximately 69cm long × 60cm wide × 6cm deep. Each fork is approximately 6cm wide × 4cm deep.
Fork extensions are approximately 76cm × 5cm × 8cm each when detached, or approximately 64cm × 5cm × 8cm when attached. Check load dimensions and load centre before selecting this option.
Start with the required lift height and load weight, then check the load centre, available setup space and the dimensions of the material being lifted. Headline capacity is not a universal limit: the allowable load changes with load position and attachment.
Check the access route, doorway and turning clearance, floor suitability, load dimensions and space to set up the lift. Confirm whether extension forks are required and speak to SAB if the site or load is unusual.
The models provide maximum lift heights of 3.49m, 4.98m and 7.94m. Their rated capacities at a 46cm load centre are 454kg, 363kg and 295kg respectively, with machine weights of 118kg, 151kg and 204kg.
Choose the lowest model that covers the required lift height and load. Also check the load centre, route, setup footprint and floor conditions before booking; SAB can help if the application is not straightforward.
At the published 46cm load centre, the rated capacities are 454kg for SLA-10, 363kg for SLA-15 and 295kg for SLA-25. The allowable load reduces as the load centre increases, so the load position matters.
Yes. The published ratings are load-centre specific. For example, the official figures at 107cm are 181kg for SLA-10, 227kg for SLA-15 and 113kg for SLA-25, so check the load centre rather than relying on the headline capacity alone.
Extension forks provide additional fork length for suitable loads that need more support. They also affect the load position, so check the load centre, load dimensions and rated capacity before choosing them.
Choose standard forks when the load is supported safely within their available length. Select extension forks when the load dimensions require more fork support, and contact SAB if you are unsure.
No. The Superlift Advantage is a manually operated material lift using a manual winch. It is designed for positioning materials and components, not for carrying people.
Yes. Use the quantity control to choose the number of physical Genie Lifts required. The displayed hire price updates for the combined model, fork and unit selection.
Choose your model, fork option, quantity and initial hire period above to get started.
