Armorgard OxBox OX1 Van Box

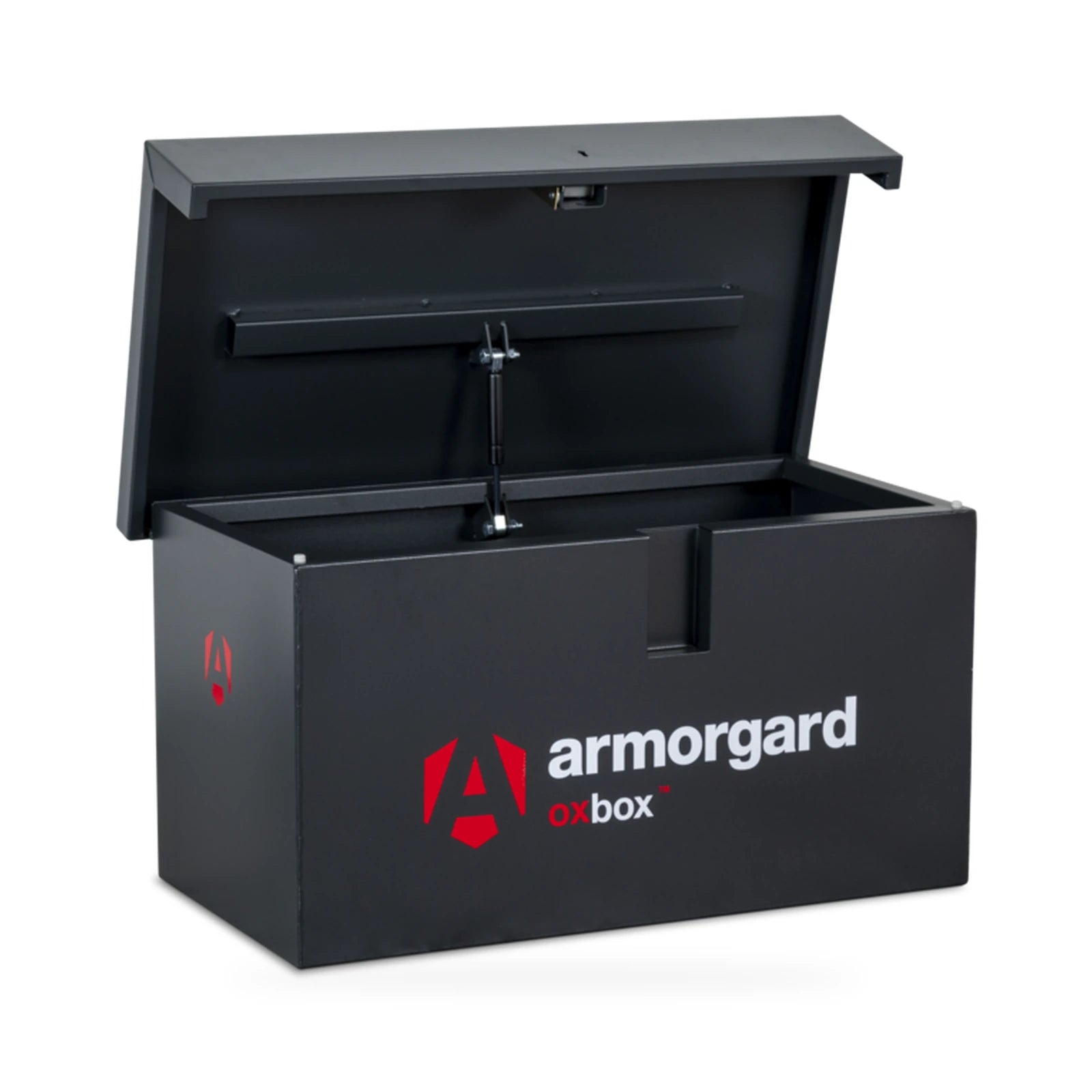

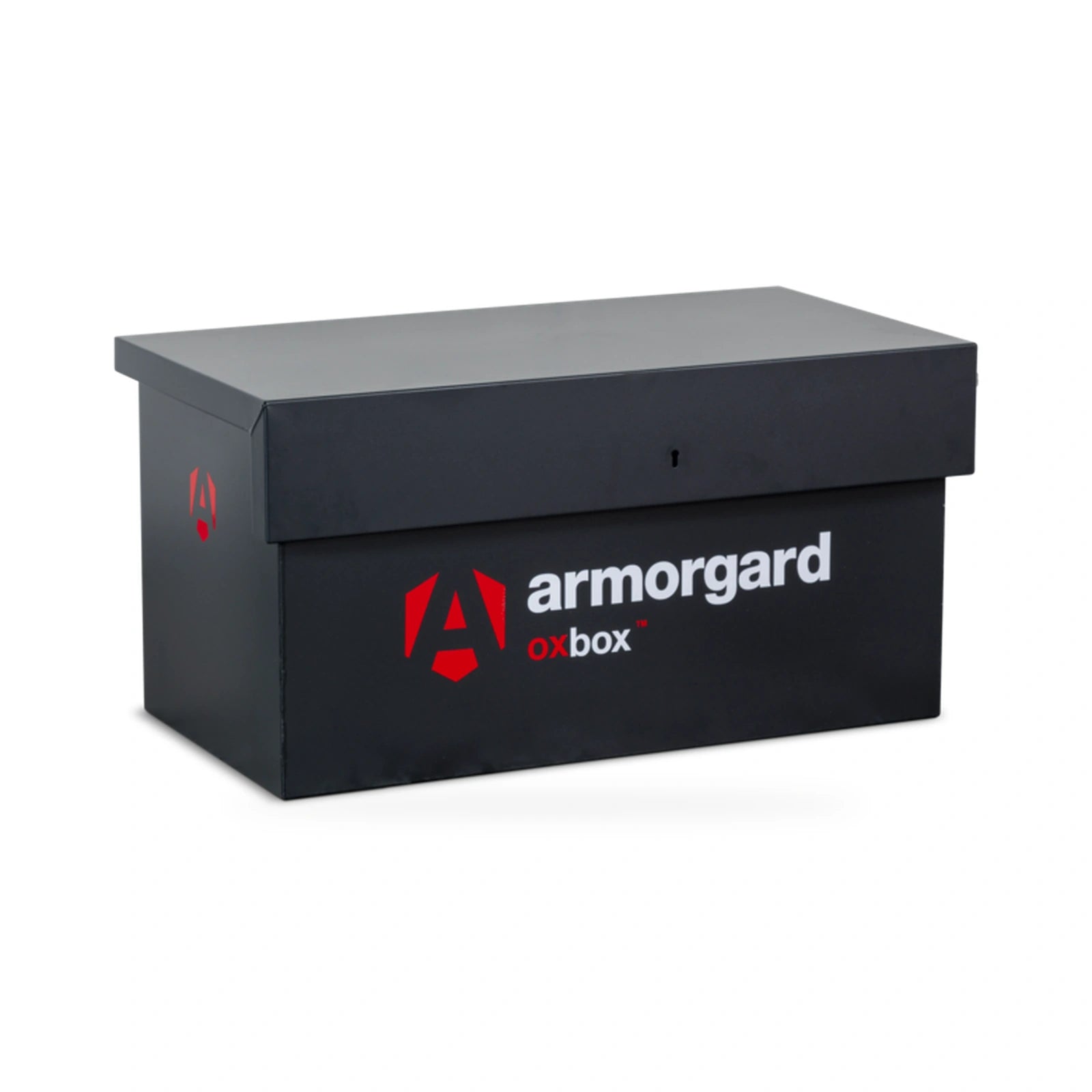

OX1 provides a compact van-box format for tools that travel between jobs. Its external dimensions are 885 × 470 × 450 mm, making it a useful comparison against the smaller OX05 when a little more width and height are available. In a vehicle layout, check not only the box footprint but the clearance needed to open the lid and remove your equipment without obstructing the rest of the load area.

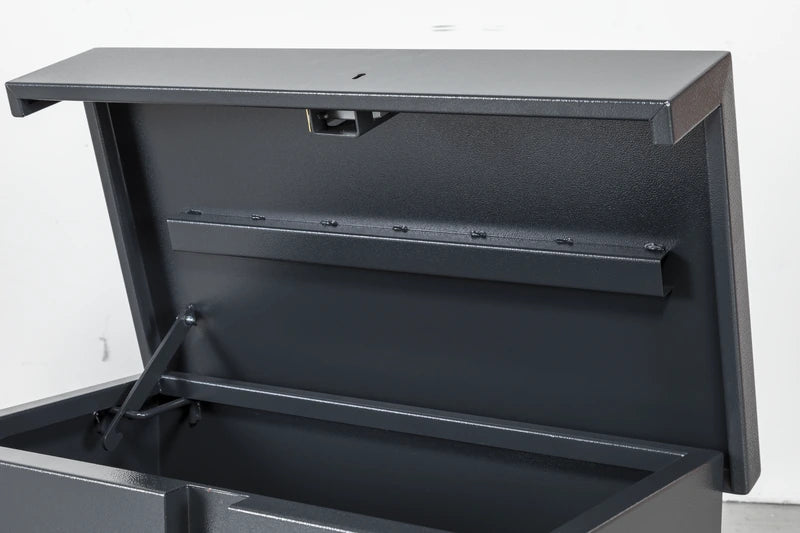

The published internal dimensions are 775 × 355 × 440 mm. Use those measurements to assess your largest case and the arrangement of smaller tools. The gas struts assist lid opening, which distinguishes this model from the OX05’s lid-stay specification. That difference may matter if the box is accessed several times during a working day. Follow the manufacturer’s guidance for opening, loading and closing rather than relying on the assisted lid alone.

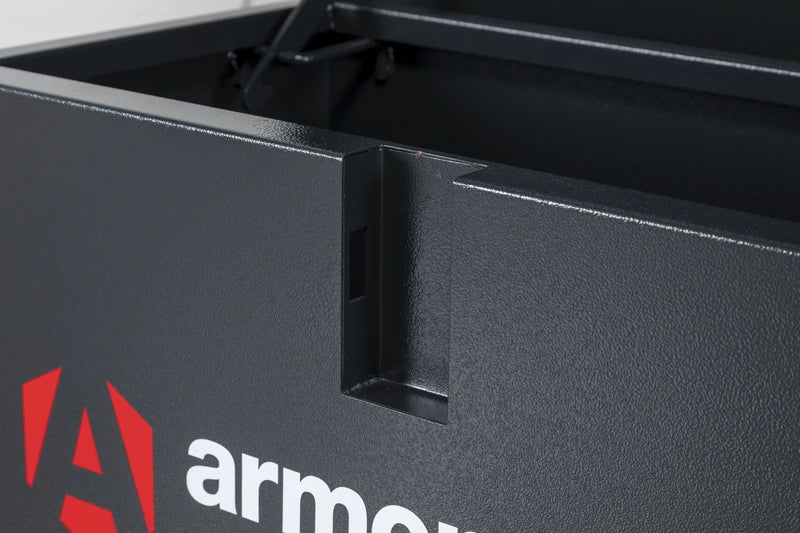

Security combines a 5-lever deadlock with internal and external anti-jemmy protection. The body is powder-coated steel, and two keys are supplied. Keep the key arrangements separate from the equipment-loading plan so that authorised users can access the tools without leaving the box unsecured between visits. The specified enclosure provides a practical storage point without a claim that it prevents every possible theft.

Pre-drilled vehicle-mounting holes support installation, subject to suitable fixing arrangements and the vehicle floor. The box weighs 32 kg, so consider how it will be placed before beginning the installation. OX1 also suits workshop and on-site storage uses where its compact dimensions are appropriate. For wider equipment compare OX2; for a site-box footprint compare OX3. SAB can help you compare the exact model specifications, with current prices supplied dynamically in the range comparison.
