Armorgard LoadAll LA750 Board Trolley

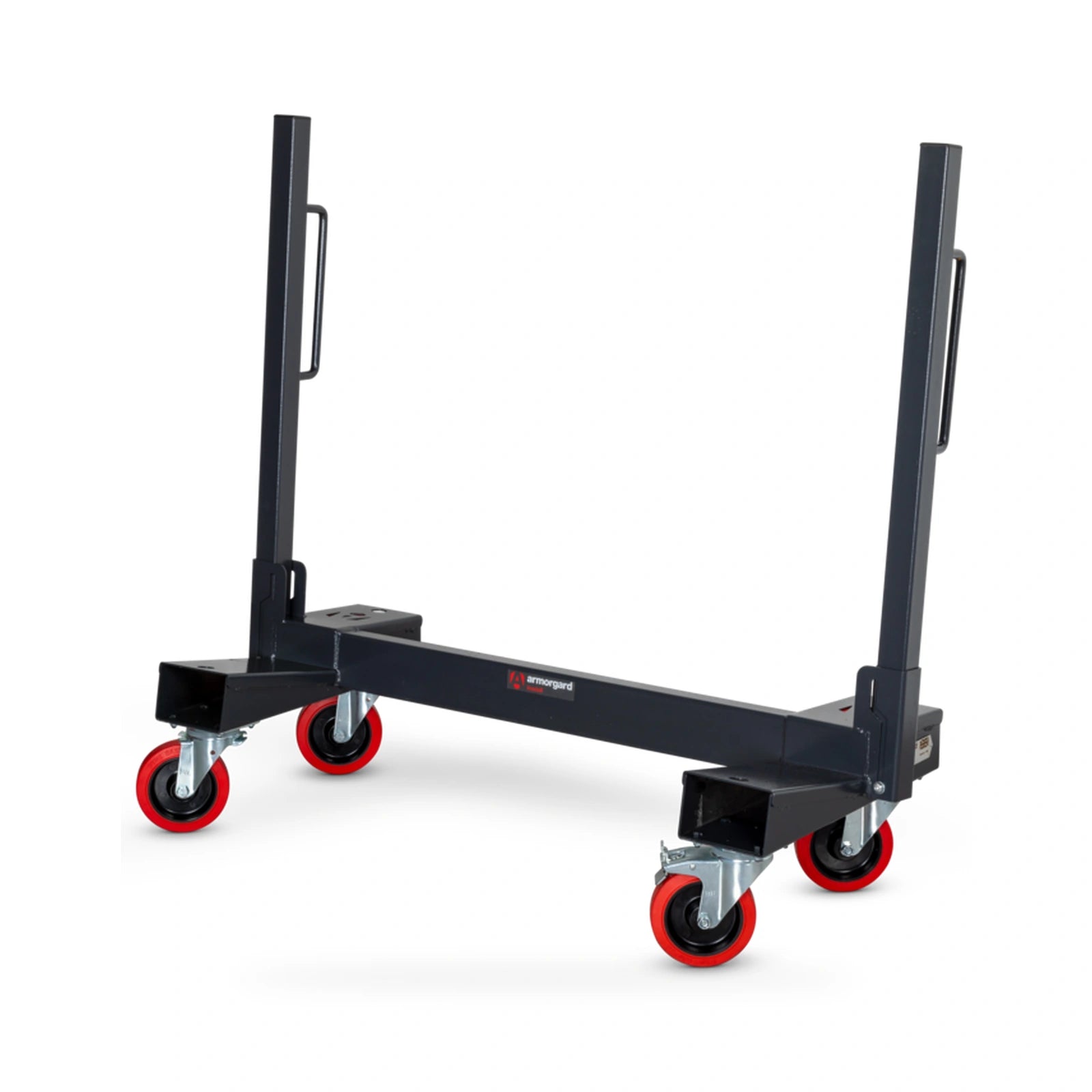

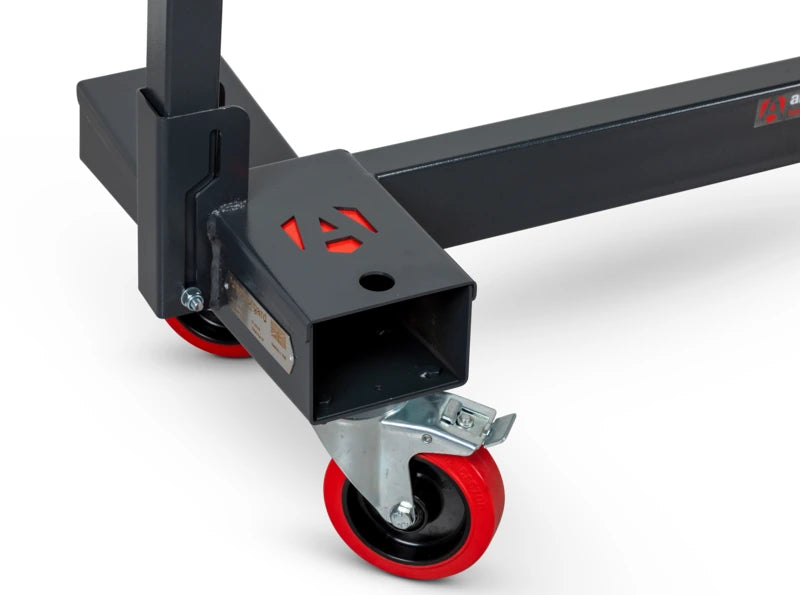

LA750 is the H-frame LoadAll board trolley for moving sheet materials around a site. The arrangement provides side-loading access for plasterboard, timber and similar materials, with built-in handles and lashing points. Before selecting a trolley, consider the materials you move, the loading method and the route between storage and the work area. The working load limit is 750 kg, but the route and safe handling of the sheets remain part of the job assessment.

The external dimensions are 1340 × 550 × 1220 mm. Its 550 mm width is useful to compare with the available route through doorways and around corners, while allowing for the dimensions of the load itself. Four heavy-duty swivel castors provide manoeuvrability, and two are fitted with brakes. Check the floor conditions and operating guidance rather than assuming the trolley suits every surface or gradient.

The H-frame configuration gives this model a different shape from the central A-frame LA1000. Choose between them using both the layout and the published working load limits. A higher rating alone is not a complete selection method; the material dimensions, access space and way the sheets are loaded should also influence the decision. Follow the manufacturer’s instructions for loading, securing and moving the trolley.

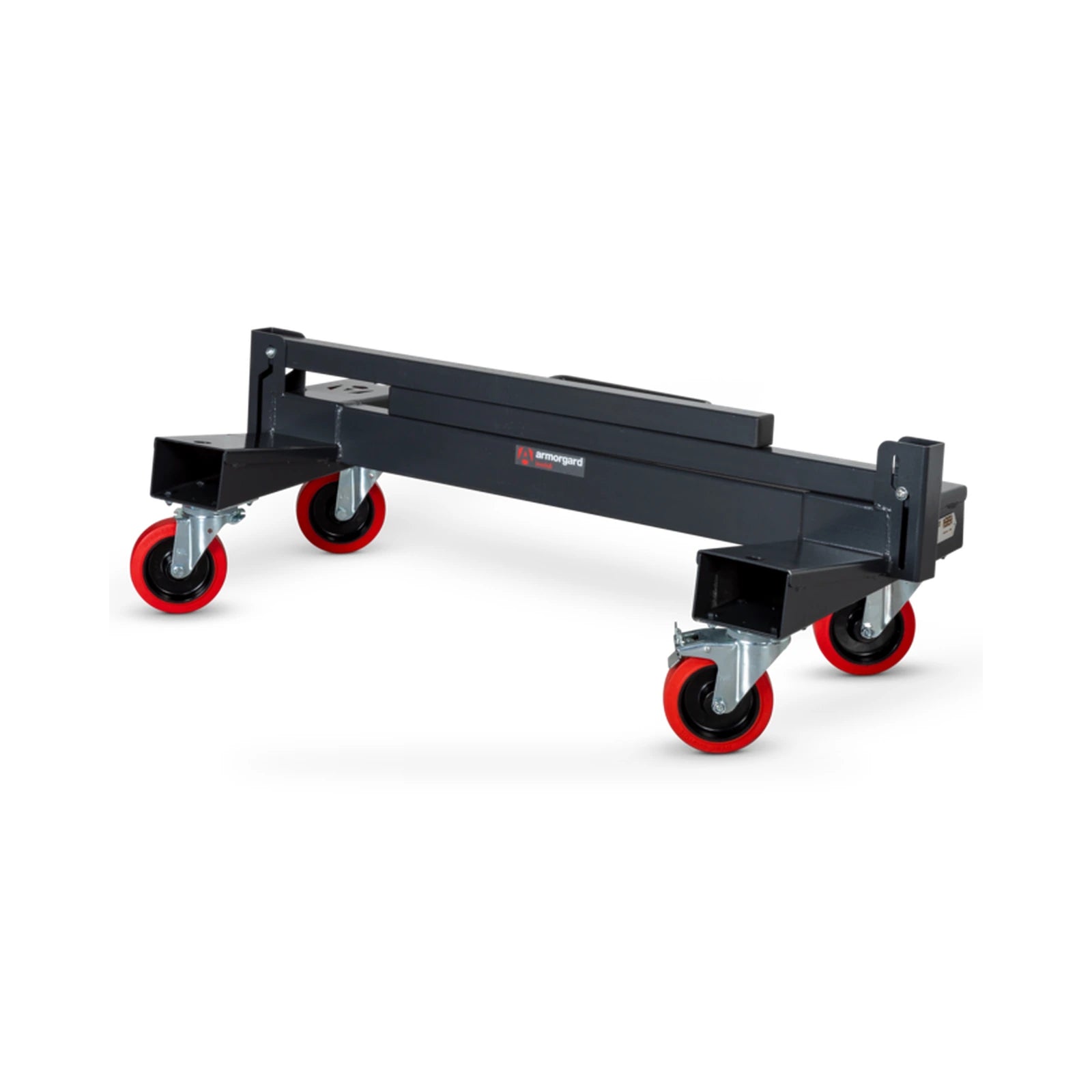

LA750 collapses to 1340 × 550 × 420 mm for storage, with dedicated space for the upright supports. The trolley weighs 45 kg and is made from powder-coated 3 mm steel with an anti-corrosive undercoat. Plan where it will be stored between jobs as well as the route used during work. SAB can help you compare LA750 and LA1000 using the verified specifications and current product prices shown below.
