Armorgard Gorilla Gas Cage GGC1

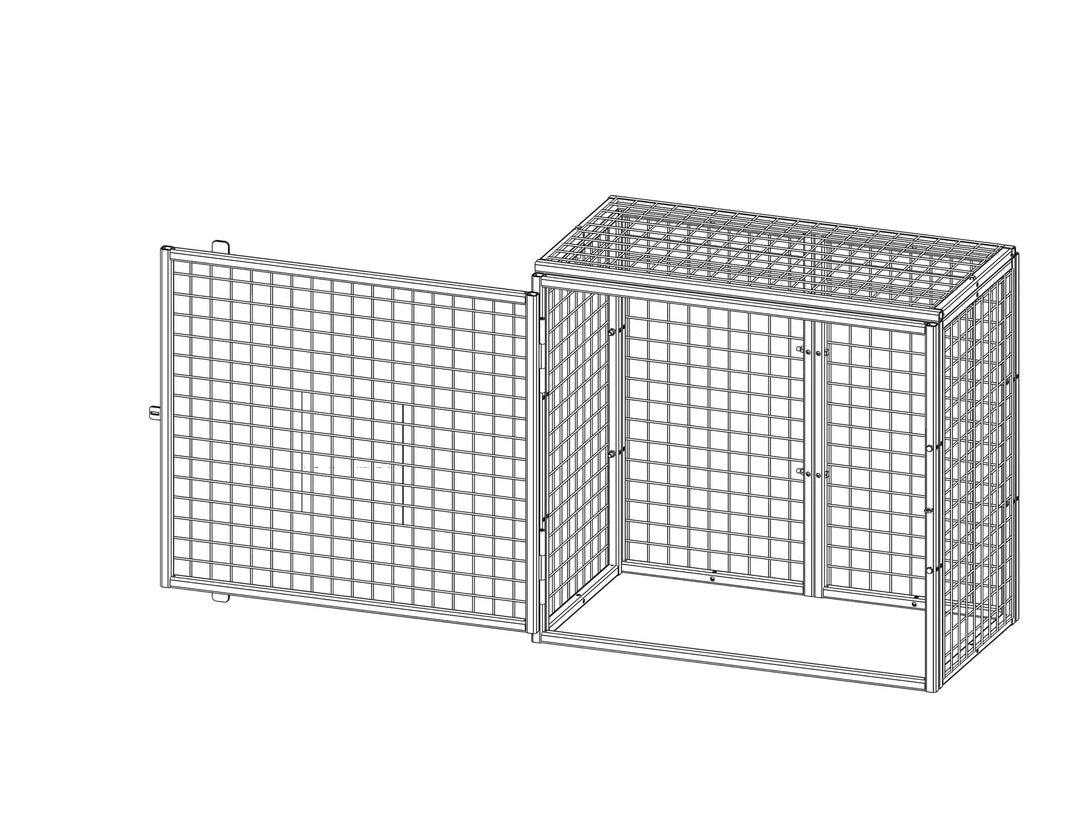

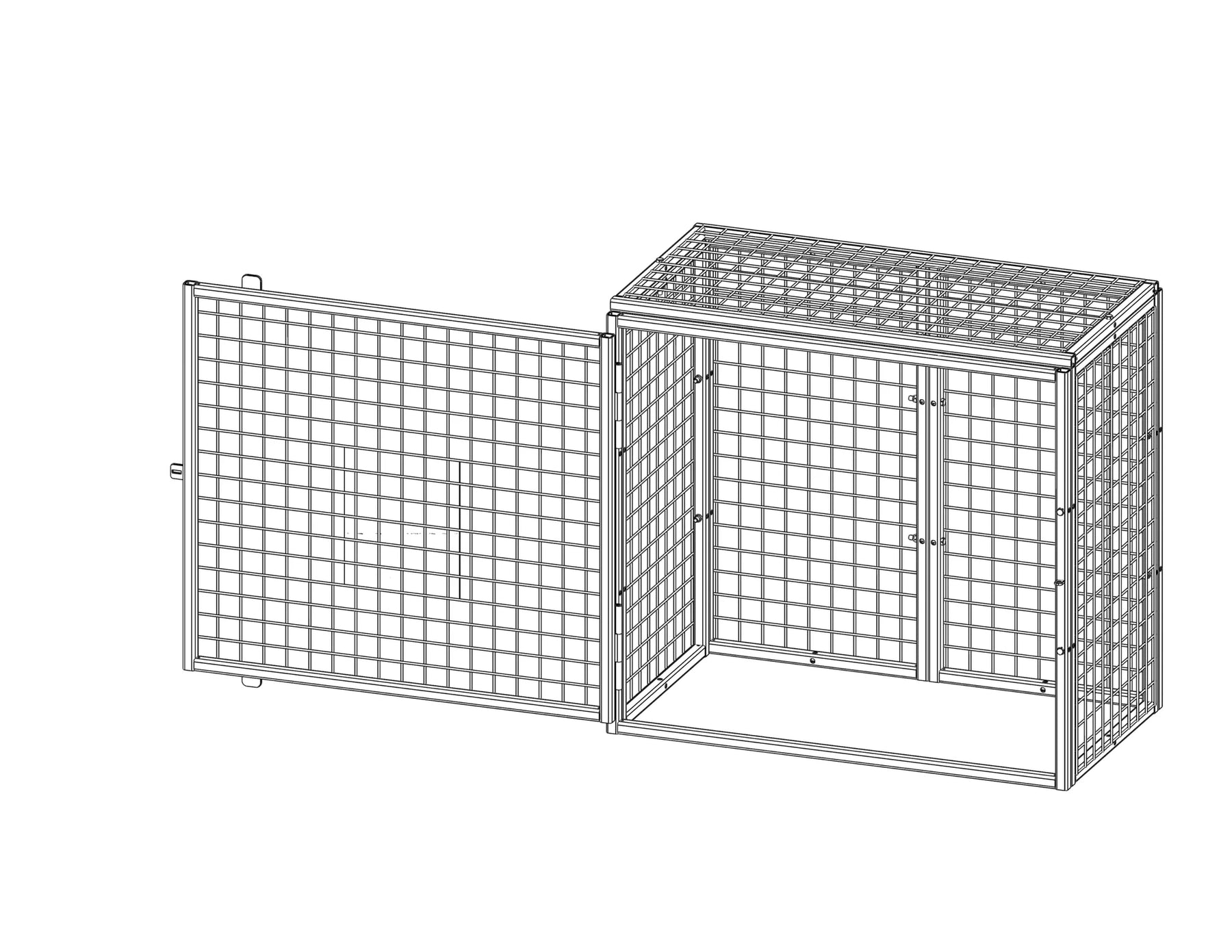

The GGC1 provides a compact outdoor gas-cylinder storage cage using modular mesh panels. The bolt-together arrangement is useful when you need an enclosure that can be assembled for a working location and dismantled when it is no longer required. The supplied assembly fixings support the panel assembly; site positioning, ground fixing and the suitability of the proposed storage location need their own assessment.

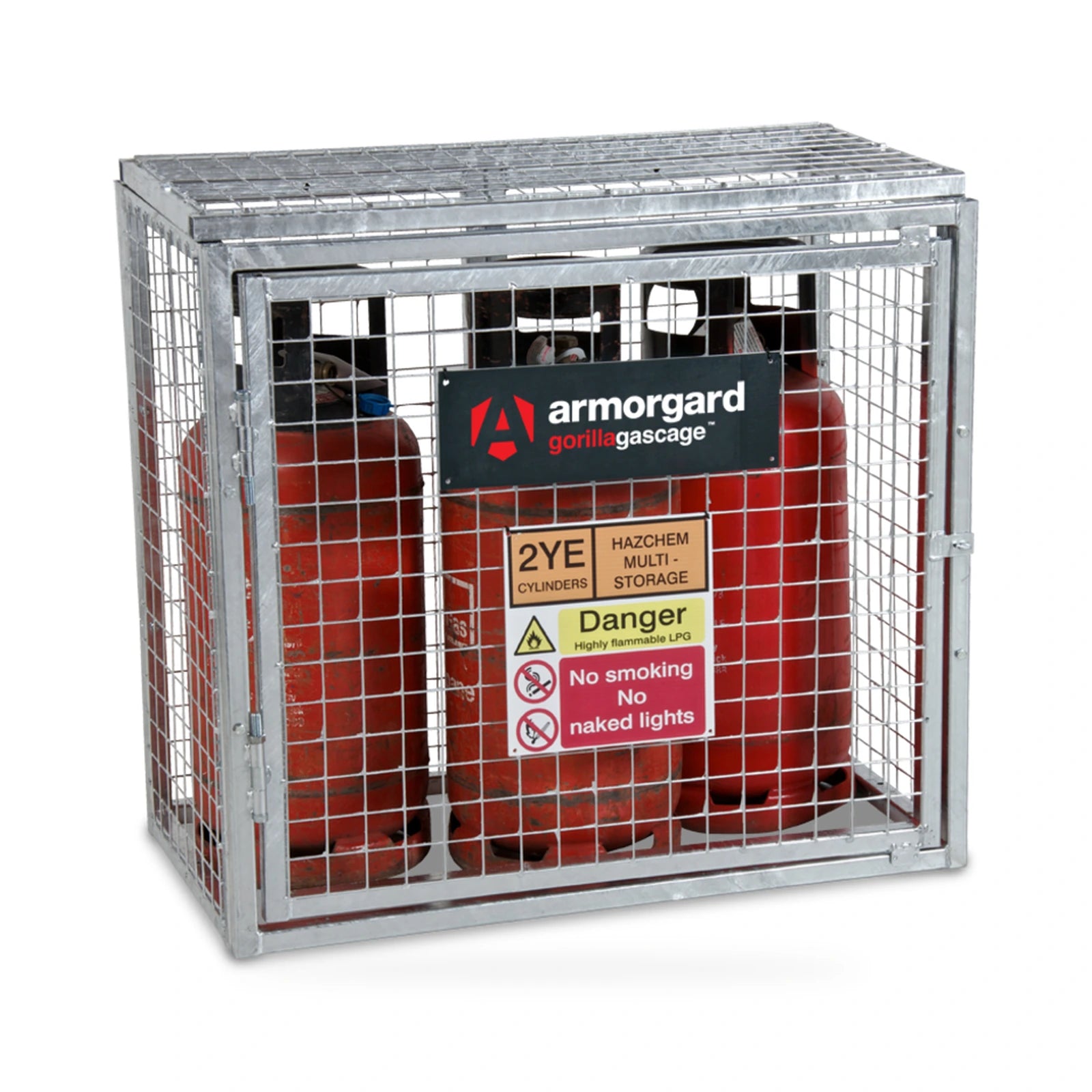

Published external dimensions are 1012 × 563 × 931 mm. Check those measurements against the available location, including access to the door and the space around the cylinders. No cylinder-count capacity or disputed internal height is stated here. Measure the intended cylinders and confirm their fit rather than assuming every cylinder type can be accommodated within the compact footprint.

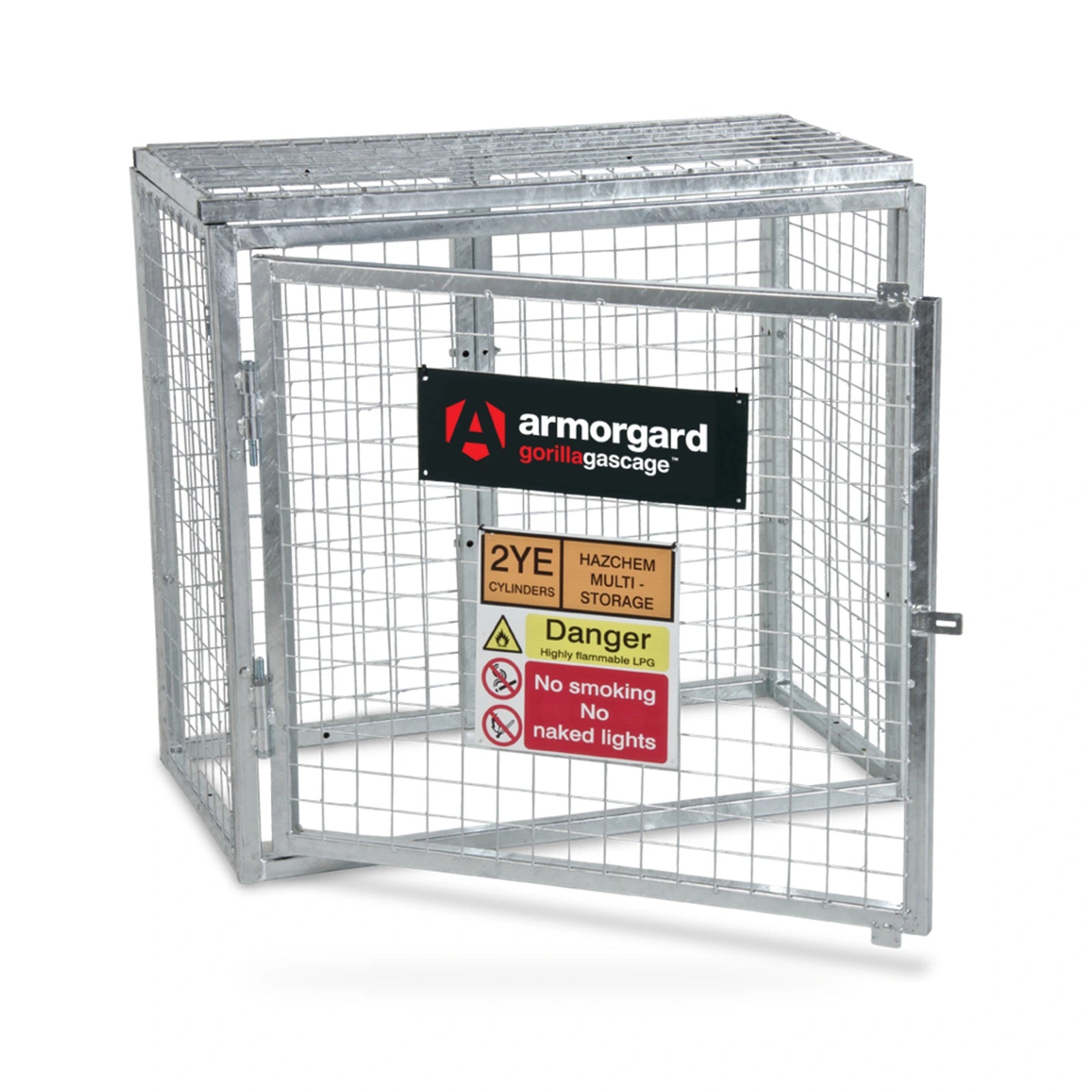

Construction uses 3 mm wire mesh and 25 mm steel box section, with a hot-dip galvanised finish for outdoor durability. Hazard warning signage is fitted. The mesh enclosure provides a different storage format from a closed hazardous-material box, and should not be substituted without assessing the materials and conditions involved. Follow the manufacturer’s guidance and the requirements of the intended cylinder-storage arrangement.

The door has a padlock point, but the padlock is sold separately. A facility is also provided for fixing the cage to the ground; check the separate site-specific fixing requirements before installation. The published weight is 40 kg, so plan handling of the panels and the assembled cage appropriately. SAB can help confirm the exact GGC1 model and any accessory enquiry. Choose it on the basis of verified dimensions and the proposed storage use, without assuming a certification or universal suitability from the product name alone.
